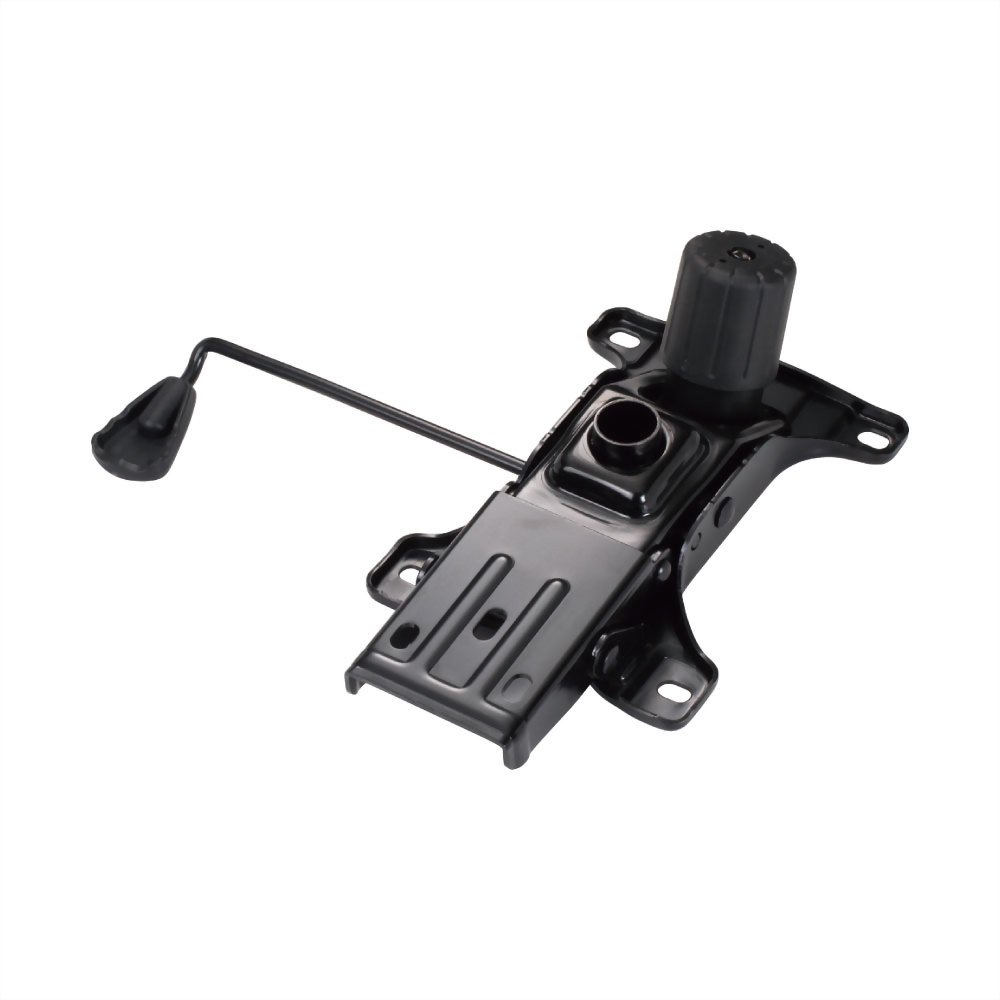

9Z538

MULTI-FUNCTION SYNCHRO MECHANISM

  User weight range   45-105 kg

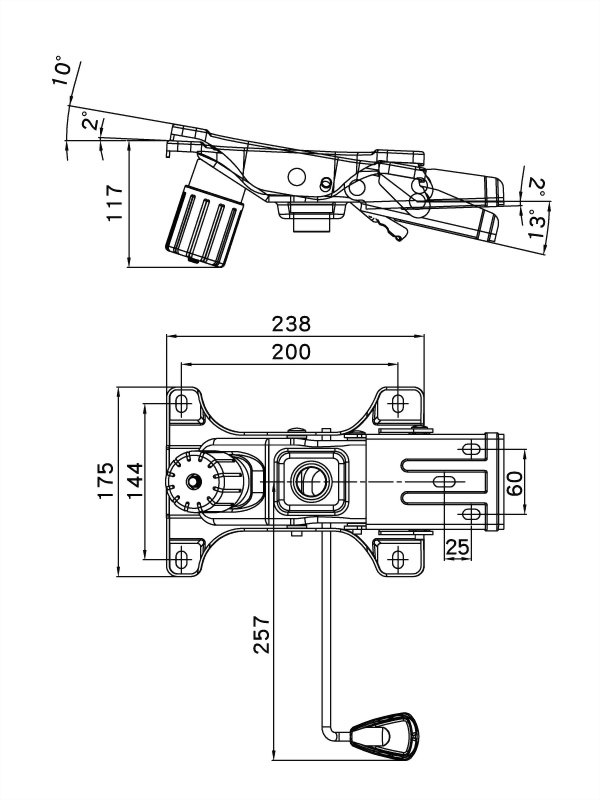

  Outside size
  238X175 mm
  Backrest recline angle

  13 deg

  Recline movement
  25 deg
  Start Angle
  2 deg


‧ Synchro tilts by 2:1 for backrest to seat ratio.

‧ Tension Mode of actuation:Rotary

‧ Lock Mode of actuation:Right side lift

‧ Lock setting:1 X increamental positions.
