9Z537

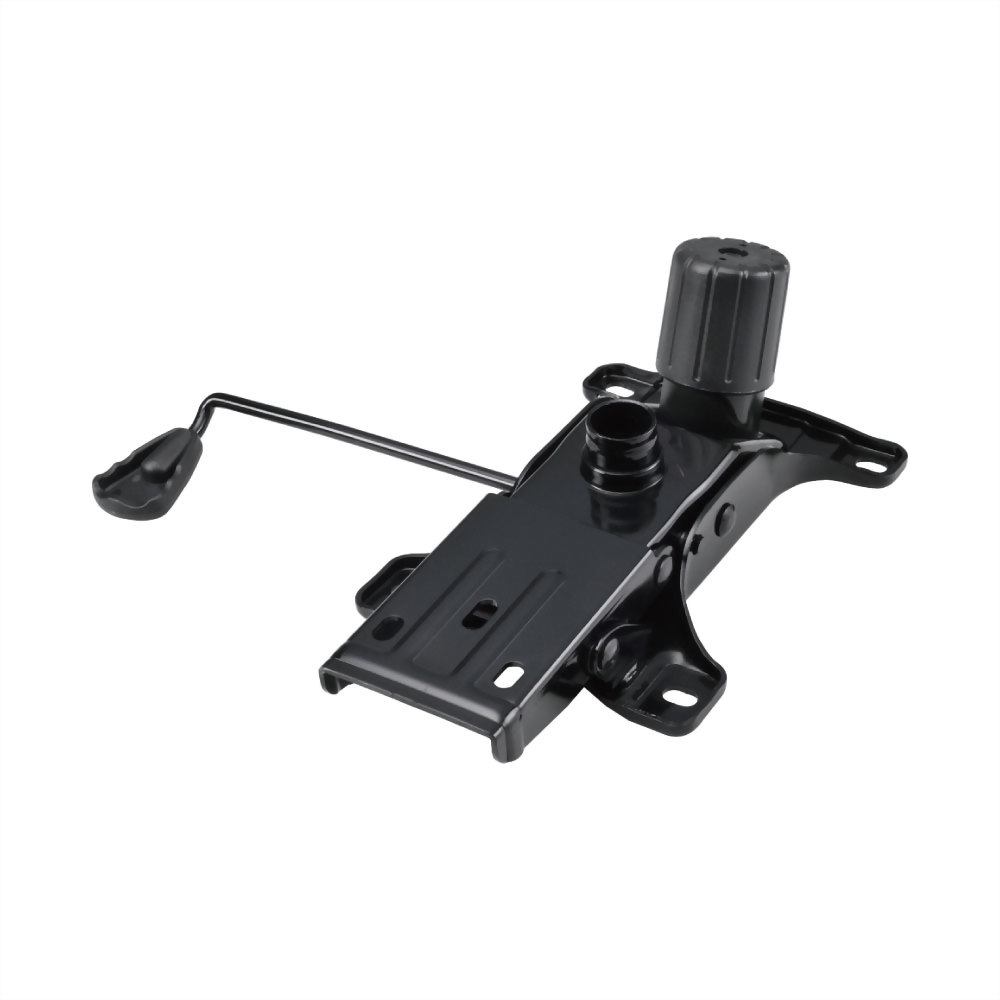

MULTI-FUNCTION SYNCHRO MECHANISM

  User weight range   45-105 kg
  Outside size
  238X 175 mm
  Backrest recline angle

  13 deg

  Recline movement
  25 deg
  Start Angle
  2 deg


‧ Synchro tilts by 2:1 for backrest to seat ratio.

‧ Tension Mode of actuation:Rotary

‧ Lock Mode of actuationRight side lift

‧ Lock setting1 X increamental positions.
