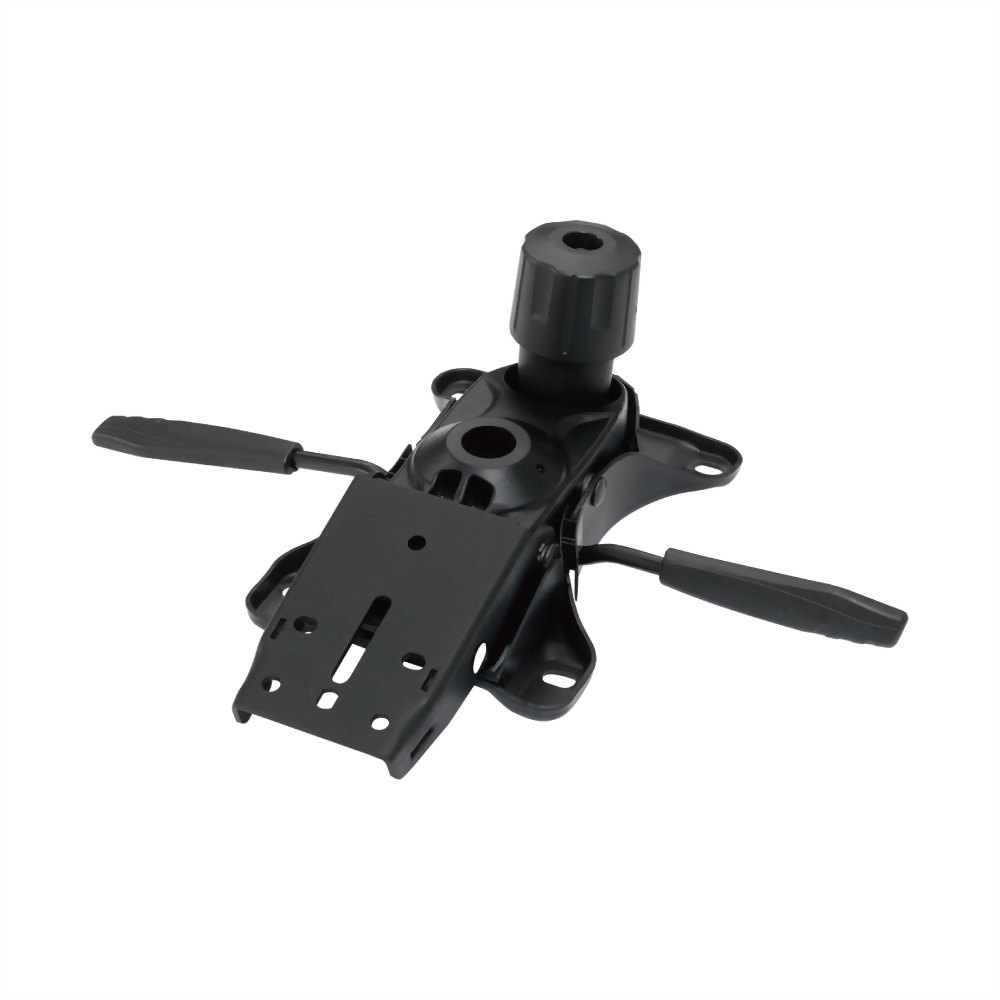

9Z503

MULTI-FUNCTION SYNCHRO MECHANISM

  User weight range   45-105 kg
  Outside size
  480X253 mm
  Backrest recline angle

  12 deg

  Recline movement
  34 deg
  Start Angle
  2 deg


‧ Synchro tilts by 2:1 for backrest to seat ratio.

‧ Tension Mode of actuation:Right side lift.

‧ Lock Mode of actuation:Left side lift

‧ Lock setting:4 X increamental positions.

‧ Anti Kick Back System:Yes
