9XA60

ROCKER MECHANISM

  User weight range   45-105 kg

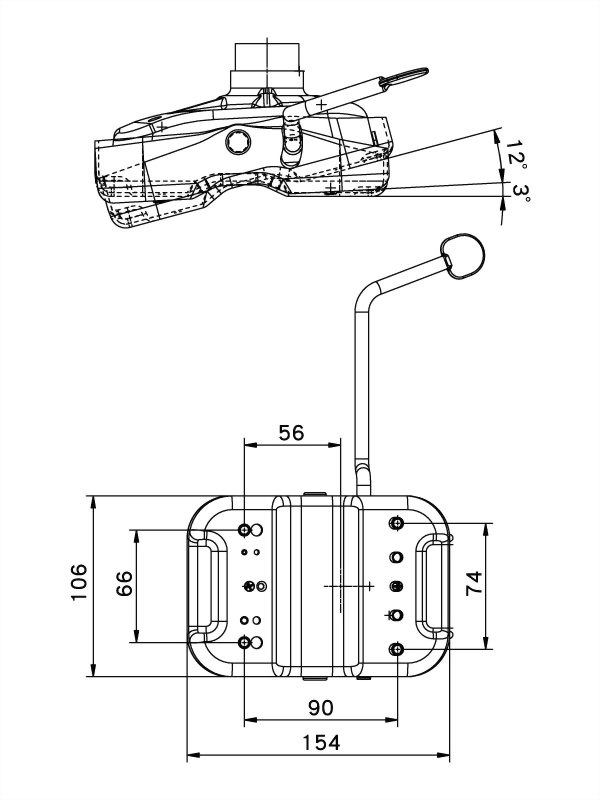

  Outside size
  106X74 mm
  Backrest recline angle

  -

  Recline movement
  -
  Start Angle
  2 deg
  Lock Mode of actuation    Right side lift
  Tension Mode of actuation

  Rotary



Free tilt lock allows the users to sit in an upright position for keyboarding while providing a comfortable rocking  motion from 12 deg to the front 2 deg to the back. Recline movement could up to 25 deg.
